Filtration Netting

NAITE supplies two kinds of filtration netting . WF SERIES--- WF water treatment filtration net is used in water treatment for feed spacer in reverse-osmosis(RO) and ultra filtration(UF). These kinds of grid provide channels with direct liquid flow.FN SERIES--The FN filtration net, as a kind of support and pleating of media filter, is combined with other medium for reinforcement and pleating by its excellent strength and elasticity. The use of such net greatly enhances the filtering surface and improves filter efficiency.

Filtration Netting Description

Feature:

Economic
Easily fabricated and converted to customized components expediently.
Canbe cut to different size
Canbe cut to different size
Canbe cut to different size

Specification:

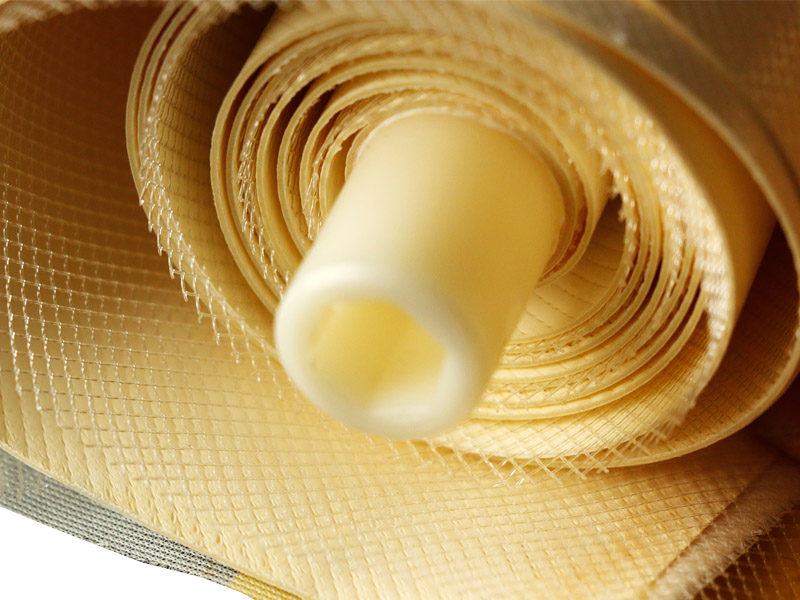

WF Water treatment filtration net:
Material	PP(with FDA certification)
Color	Clear
Mesh type	Diamond
Thickness	0.33-2.0mm
Mesh size	2x2mm,3x3mm,4x4mm
Width	1016-1200mm
Length	Can be customized
Package	Film wrapped and 1 roll/ctn

Application:

Ideal for the water, liquid filtration application
Normally used as a support for
Used in water treatment for feed spacer in reverse-osmosis(RO) and ultra filtration(UF)
Provide channels with direct liquid flow

Feature:

Light weight and economic
Resistance to chemicals and corrosion
Non-conductive
Excellent strength and elasticity

Specification:

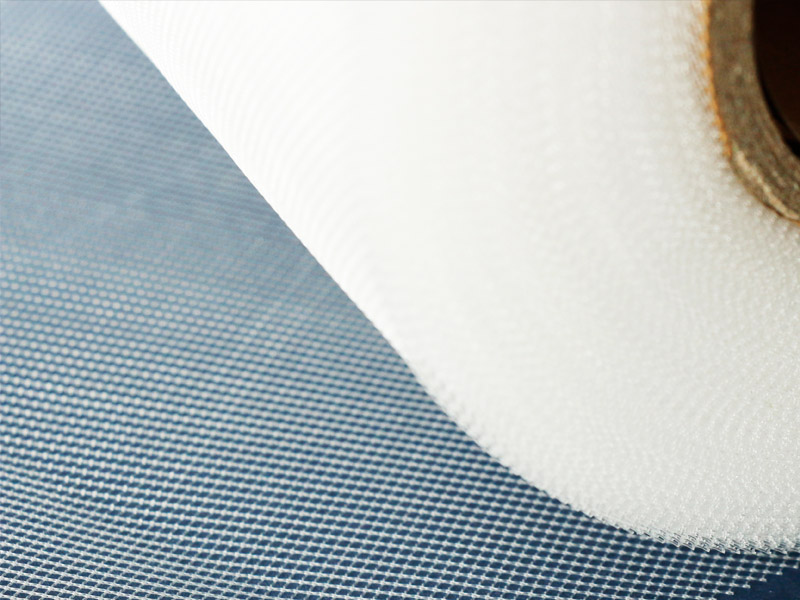

FN Filtration net net:
Material	PP,PE, PA
Color	Clear
Mesh type	Diamond
Weight	60-400gsm
Mesh size	2x2mm,3x3mm,4x4mm
Width	1016-1200mm
Length	Can be customized
Package	Film wrapped and 1 roll/bag
